2 Wheels Shrimp Fish Farm Aerator Shrimp Farming

Place of Origin China
Brand Name SUNOLTA
Model Number FCPWA-1.5
Minimum Order Quantity 1 set
Price 2000USD+
Packaging Details Carton
Delivery Time 3-15 Work Day
Payment Terms T/T
Supply Ability 60000 SETS/YEAR

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fish Pond Aerators Usage Aquaculture Machine Aerators
Function Fish Pond Aerators Dynamic Efficiency >=1.8(O*2)/kwh
Oxygen Increasing Capacity >=2.25(O*2)/h Power 0.75KW
High Light

2 Wheels Fish Farm Aerator

,

Fish Farm Aerator DC48V

,

shrimp farming aerator 1000W

Leave a Message
Product Description

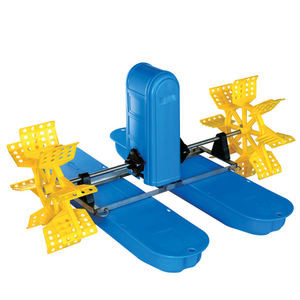

2 Wheels Fish Shrimp Pond Paddle Wheel Aerator





The motor of this equipment is equipped with a built-in protection device that ensures safety during operation. In case of any overheating or power phase issues, the device will automatically shut down the motor to prevent accidents and avoid any damage to the motor. This feature ensures that the motor has a longer lifespan and reduces the need for frequent repairs or replacements.



Additionally, the gears used in this equipment are made of high-quality chromium manganese titanium alloy steel. The tooth surface undergoes a carbonitriding process that significantly prolongs the service life of the gears. This means that the equipment can withstand high levels of stress and pressure without experiencing any damage to its gears.



To cater to the unique requirements of different users and environments, this equipment also comes with specially developed engineering plastics and stainless steel impellers. These materials ensure that the equipment can be used in corrosive environments such as sea water or industrial wastewater without requiring frequent replacements of the impeller or brush paint. This feature not only saves time and money but also ensures that the equipment remains functional for an extended period.



Name
Quantity
Material
Remark
Brushless motor
1 pcs
copper wire motor
DC48V 1000W
L shelf
2 pcs
304 Stainless Steel

Pipe shaft
2 pcs
304 Stainless Steel
800mm Length
Paddle Wheel
4 pcs
Nylon

Float
6 pcs
HDPE
1750mm Length
Connector
2 pcs
Rubber

Bearing bracket
2 pcs
Nylon

Power Distribution Box
1 pcs
circuit breaker
solar controller
DC power supply

Battery
4 pcs

45AH*4
Solar Panel
2 pcs

250W*2







Features:
1) Actual-bevel gears are used instead of worm gears, thereby economizing energy with high efficiency, and saving over 20% electric energy over traditional models
2) The accrual-bevel gear is made of chromium-manganese-titanium with carbon-nitride surface treatment. This ensures long usage life spans and high rigidity
3) A mechanical seal is available to prevent oil leakage
4) Inside protectors are available to prevent the motor accidentally burning out
5) PE floats, nylon impellers, and stainless steel shafts and frames are available
6) Our paddle wheel aerators are greatly improved and produced according to the newest international technologies. Adopting whole plastic floats, these aerators have stainless steel transmission shafts and frames
7) In April 2000, these products were examined by the China Fishery Machinery Instruments Equality Supervision Center. All 9 models were evaluated as reaching the SC/T6017-1999 standard
8) With oxygen transfer rates of 2.59kg (O2)/h, 36.3% higher than the standard, power efficiency is 1.71kg (O2)/kWh, 36.8% higher
than the standard





High oxygenation performance :

1 High quality motor expertise design for aquaculture industry

2 Low friction gear reducer with low resistance to decrease energy losses

3 Sturdy stainless steel Frame ensure without any deformation and high durability

4 High performance impeller, replaceable paddle,low maintain cost

5 HDPE float resist impact, acid-alkalinity and sun exposure, one piece blow molded



Working Principle

Powerful features making wave with bottom surface accelerated the exchange of oxygen-rich water to fully utilize photosynthesis of algae to consume organic residues, can save feed, but also purify water, to avoid NH3 and nitrite and other harmful substances. Pond surface waves more easily dissovled oxygen rate,adjust the upper and lower temperature, more conducive to water modulation.



2 Wheels Shrimp Fish Farm Aerator Shrimp Farming 02 Wheels Shrimp Fish Farm Aerator Shrimp Farming 12 Wheels Shrimp Fish Farm Aerator Shrimp Farming 22 Wheels Shrimp Fish Farm Aerator Shrimp Farming 3



FAQ

Q1. Are you a manufacturer or trading company?
A: We are a manufacturer.

Q2. What's your company's main products?
A: Our company is specialized in kinds of aerators for fish pond and shrimp pond, such as paddlewheel aerator.

Q3. What's the MOQ for your production?
A: NO MOQ.

Q4. What's the lead time?
Usually about 15days-20days, if large quantity, will check the production line and arrange the schedule.

Q5. What's your payment term?
A: 30% T/T in advance, the rest pay off before delivery.

Q6. Where is your loading port?
A: Ningbo, or else port in China as your requirements.
